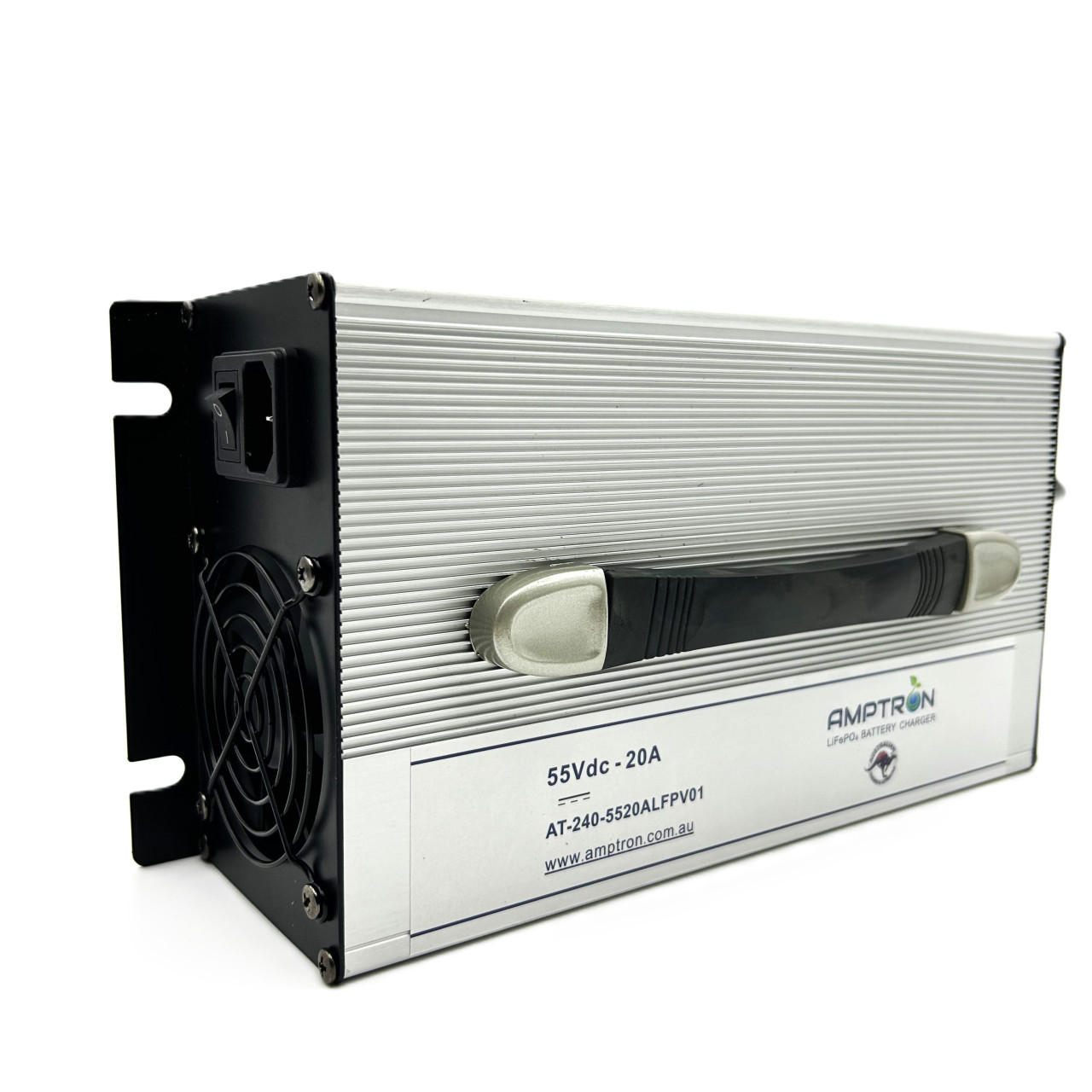

  • Amptron 20A 48V Lithium ​LiFePO4 Battery Charger with switch
  • Amptron 20A 48V Lithium ​LiFePO4 Battery Charger with switch

    • Amptron 20A 48V Lithium ​LiFePO4 Battery Charger with switch

    $469.00
    (No reviews yet) Write a Review
    FREE SHIPPING:
    AUSTRALIA WIDE

    Product Description

    AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

    The 48V 20A model charger operates from mains AC 200-260V as input, supplying up to 20A charging output suitable for nominal 48V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.



    BUILT IN PROTECTION SYSTEM
    AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers have a built-in Protection System to prevent damage to the charger from almost any external accidental occurrence that would normally cause damage. The internal Protection System will automatically disconnect to prevent damage to the charger, and will automatically reconnect when the error condition has been resolved.

    PROTECTION SYSTEM FEATURES

    • Over Voltage Protection – When the charger output voltage exceeds the maximum charging voltage, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
    • Over Current Protection – When the charger output current exceeds the maximum charging current, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
    • Short Circuit Protection – When the charger detects a short circuit at output terminals, the charger enters a short-circuit protection state. It will restore to normal working conditions automatically after troubleshooting.
    • Reverse Polarity Protection – When the charger detects that the polarity at the output terminals are reversed, the charger enters a reverse polarity protection state. It will restore to normal working conditions automatically after troubleshooting. This Protection System is designed to last throughout the life of the charger and provide reliable charging for thousands of cycles.

    Detailed information and noted points:

    Item
    Specification
    Description/Remark
    Model
    AT-240-4820CLFPV01
    AC/DC ​48V 20A LiFePO4 Battery Charger
    Input Voltage
    min 200Vac to max 260Vac

    Input Power
    Max 1450W

    Constant charge voltage
    Vdc min 55.1V to max 55.7V

    Constant charge current
    Min 19A to max 21A

    Charge complete current
    Vdc min 1.2A to max 1.8A

    Ripple voltage
    650mV

    Efficiency
    85%
    At full load
    Product Dimensions
    L-260mm x W-175mm x H-90mm
    ​
    Weight
    3.5Kg




    Charge Curve:

    Amptron EcoFlow Delta 1300 Power Pack Graph
