Product Description

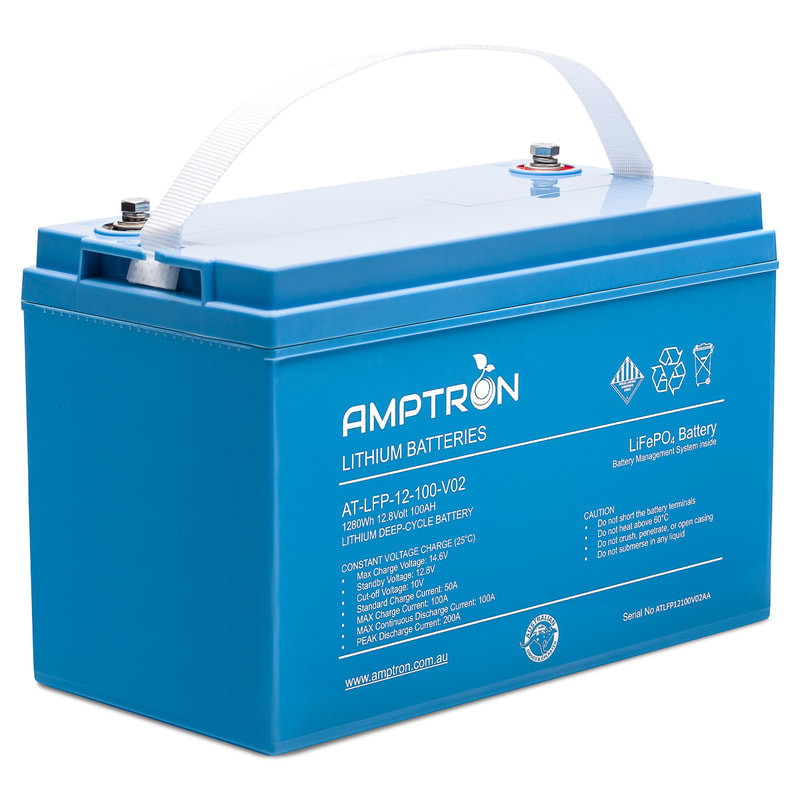

AMPTRON® 12V 100Ah Lithium LiFePO4 Batteries are an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 100A and peak discharge current 200A for 5 seconds.
Our batteries come with a 4 year warranty and are designed using only the highest quality components. This includes the use of a robust Battery Protection System (BPS), aluminum encased prismatic cells, solid busbar connectors and a solid frame to reduce movement and damaging vibrations. AMPTRON® batteries can also be placed on its sides without the risk of components coming loose or loss of usable capacity.
Our Lithium batteries use a high quality robust integrated Battery Protection System (BPS) and is designed to manage and control all the battery protection requirements. The BPS maximises the performance of the battery by automatically balancing the cells and protecting them from being over charged or over discharged. Our integrated BPS design is what allows our batteries to be used as an AR "Alternative Replacement" for most applications requiring durable, high quality, dependable and lightweight Lithium Batteries.
Heavy Duty - Built in Battery Protection System
Internal Features:
- Low Voltage Protection Switch - Automatically disconnects around 10V
- Over Voltage Protection Switch - Automatically disconnects around 14.8V
- Short Circuit Protection Switch - Automatically disconnects
- Reverse Polarity Protection Switch - Automatically disconnects
- Internal cell balancing - Automatically balances cells
- Charge Balancing - Independent balancing for multiple batteries connected in parallel or in series.
- This Battery Protection System is designed to last throughout the life of the battery and provide reliable power for thousands of cycles.
CELL BALANCING
The BMS balances the cells by sending more current through the length way circuit boards and into cells with a lower voltage. The BMS will also discharge cells that exceed 3.65V during charging.
THERMAL FUSE
Internal Cell Safety Fuse
Our latest cell technology is manufactured with a internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat.
SAFETY VENT
High pressure safety vent
Each cell has a high pressure safety vent that will flip open to release energy and prevent explosion.
ELECTROLYTE
Flame Retardant Electrolyte
Our cells are manufactured with our patented flame retardant additive in our electrolyte.
EXPLOSION PROOF
Explosion proof Nickel plated steel
Every AMPTRON® cell is manufactured in our explosion proof Nickel plated steel Prismatic case.
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-12-100-V02
|
12V 100Ah Lithium LiFePO4 battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-330mm x W-173mm x H-215mm
|
|
|
Weight
|
11.5kg
|
|
|
Cell type
|
3.2V 100Ah
|
Prismatic
|
|
Battery module
|
4 pcs 3.2V 100Ah cells, 4 serial
|
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
Standard capacity（0.2C5A）
|
100 Ah / 1280Wh
|
|
|
Cycle life
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
12.8V
|
Working voltage per cell: 3.2V
|
|
Charge voltage
|
14.4 - 14.6V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
2.5V for lowest cell, nominal 10V
|
Cut-off is triggered when the first cell reaches 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Standard charge current
|
20A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Optimum charge current range
|
20A (0.2C) to 50A (0.5C)
|
Cell max voltage < 3.9V
|
|
Rapid charging
|
Max. charge current 100A (1C3A)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
100A
|
1C, cell min voltage> 2.0v
|
|
Peak discharge current
|
200A
|
2C (5 seconds)
|
|
Discharge performance in normal temperature
|
20A (0.2C3A) ≥ 100%
1C3A ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 10mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
Ingress Protection (IP Rating)
|
IP 65
|
|
